PowerPoint 2013: Add Closed Captions and Subtitles using Office Mix (PC only)

 PowerPoint logo

Follow the steps below to add closed captions or subtitles to a PowerPoint presentation using Office Mix...

Office Mix is compatible with MS Office 2013 and Office 365 and helps to create engaging presentations using screen capture, audio recordings, onscreen notes, embedded live websites, and more.

Please note that Office Mix is only available for Windows/PC users!

Step 1- Install Office Mix on your PC

Navigate to the Office Mix website and click Get Office Mix.

Download Office Mix to add closed captions to PowerPoint presentations
Next, open the installer and PowerPoint will launch with Office Mix installed.
You’ll see a new MIX ribbon along the top of PowerPoint.

Office Mix ribbon

Step 2- Record Voiceover and other interactions using Office Mix

Use the Slide Recording feature on the new Mix panel to record narration over your slides and also record animations and interactions with your content.

Note: In order to eventually export your presentation as a Mix, make sure you save your PowerPoint file in .pptx format.

Step 3- Export MP4 of the presentation

To prepare your presentation for the transcription process, export the presentation as an .mp4

Navigate to MIX > Export to Video and then select your video resolution based on the playback device.Export PowerPoint to Video for transcription to create closed captions
Please note that a high resolution .mp4 is not required for the transcription process.

Name the presentation and save the .mp4 file to your computer.

Step 4- Submit the MP4 presentation for transcription & captioning

Log into your 3Play Media account and navigate to Upload Media > Upload Media. Upload PowerPoint presentation to create closed captions
Select the MP4 from your computer and follow the additional prompts to specify turnaround as well as a destination folder.
See more information on how to upload a video directly from your computer for the transcription and closed captioning service.

Upon completion of the transcription process you will receive an email notification that your captions are available for download.

Step 5- Download closed captions in the DFXP format

When the file has been complete log back into your 3Play Media account and download the file in the DFXP closed caption format.

See more information on how to download a file to your computer.

Step 6- Convert DFXP to TTML

Office Mix only accepts caption files in TTML (.ttml) format.

Open the DFXP caption file in a simple word processor like Notepad.

Go to File > Save As.

Add “.ttml” to the end of the file name.

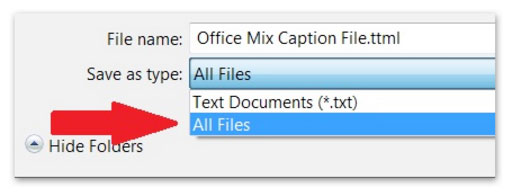

Under Save File Type As, select All Files.

Select All Files

Under Encoding, select UTF-8.
Select UTF 8

Click Save to convert the DFXP to a TTML file.


Step 7- Add the TTML file to your Mix

Open your PowerPoint document and click on Upload to Mix.
In the Upload to Mix panel, click Next and sign in using either Microsoft, Google, or Facebook login credentials to access files stored on the cloud.

In the next pane, select This is a New Mix.
Be sure to check the box under Enable playback on mobile devices as this will create a video giving your users the ability to view the Mix offline and on mobile devices.
Please note that this is REQUIRED in order for the closed captioning feature to function.

Click Next.
Once uploading the mix is complete click Show Me My Mix.

Fill out the fields for title, category, description, etc., for your presentation. |

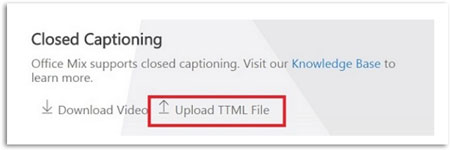

In the Closed Captioning section, click on Upload TTML File
Upload TTML closed captions to PowerPoint

Select your TTML caption file from your computer and upload it.
