Brightcove Live Captioning: Scheduling a Live Event

Once the Live API Key has been added to the Brightcove integration settings within your 3Play Media project, follow the steps below to schedule a live event within Brightcove and the 3Play Media account system.

Live event scheduling defaults to US-Eastern time unless a new timezone has been configured at the user level and configured for users outside of the US-Eastern time zone.



Step 1 - Create the Event in Brightcove

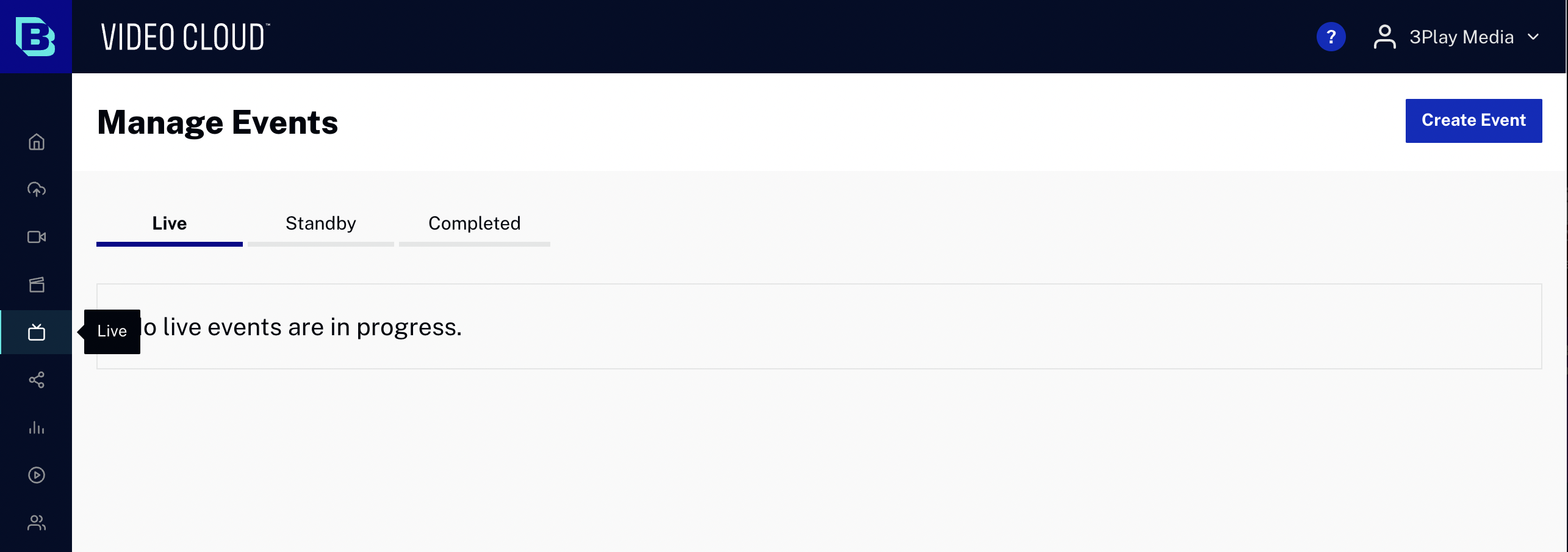

Navigate to the Brightcove Live module.




Click Create Event.




Step 2 - Configure the Event in Brightcove

Enter an Event Name for the live event (required). The name of the event will display within 3Play Media later when scheduling the captioning at step 5.

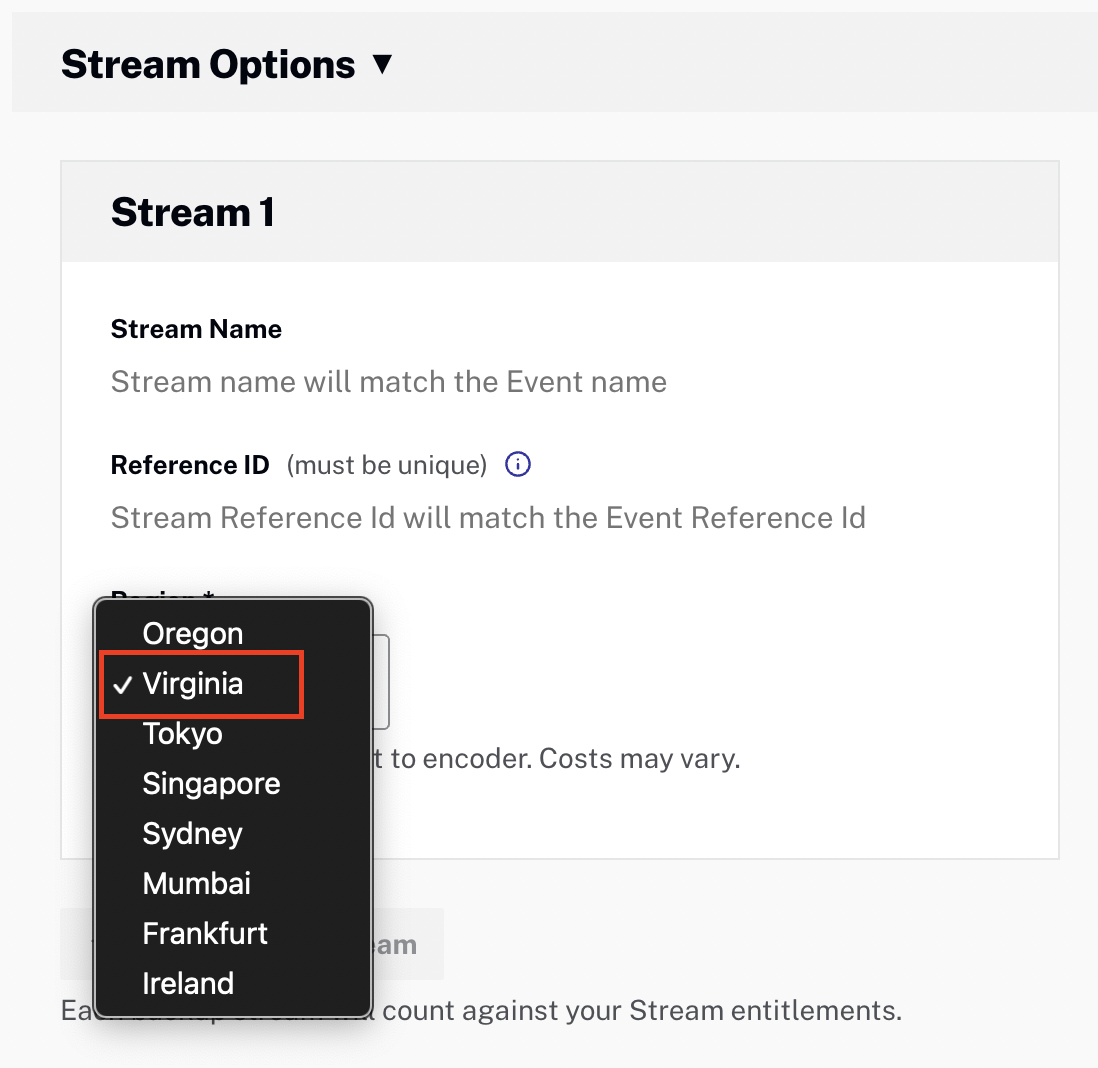

Under Stream Options, select Virginia as the Region. This is the closest location to where 3play is processing the stream, optimizing the stream connectivity.




Click Create Event




Step 3 - Schedule Brightcove Live Event in 3Play Media

Sign in to 3Play Media and click Live Captioning in the top navigation bar.




Step 4 - Within 3Play Media Click Schedule Live Captions

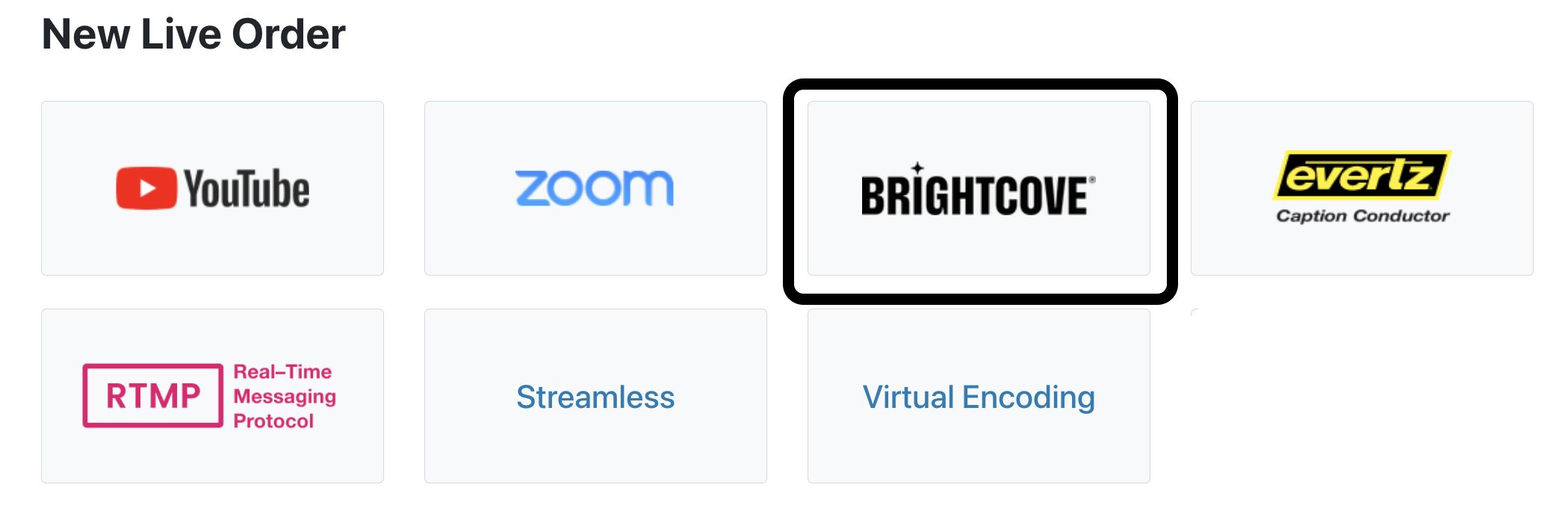

Step 5 - Select Brightcove

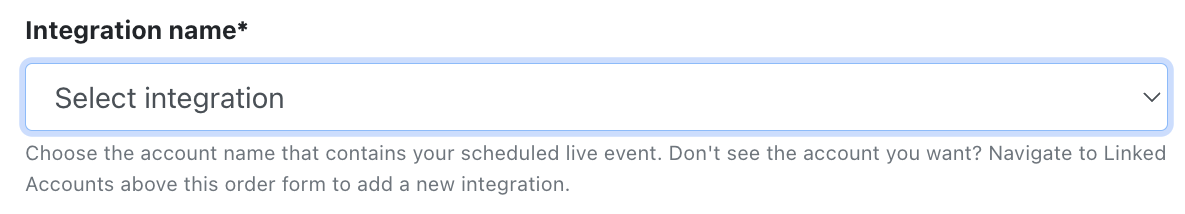

Step 6 - Select the Brightcove linked Account and Event

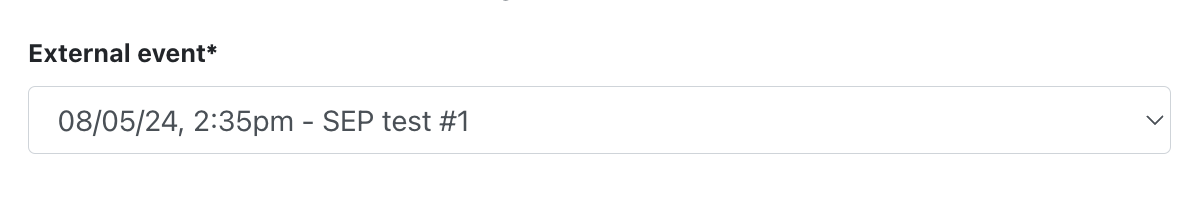

Select the Brightcove account corresponding to the live event scheduled in Brightcove (if more than one account is linked) and select the live event by checking the box to the left of its name.




Step 7 - Configure Live Captions

Start Captions

Once the Meeting is selected note that Start Captions defaults to 15 Minutes Before. This is 3Play Media's suggested setting as it should allow enough time to ensure the captions will display during the Brightcove Live event however it can be adjusted to At Event Start Time, 5 Minutes Before, 10 Minutes Before, 20 Minutes Before, or 30 Minutes Before.

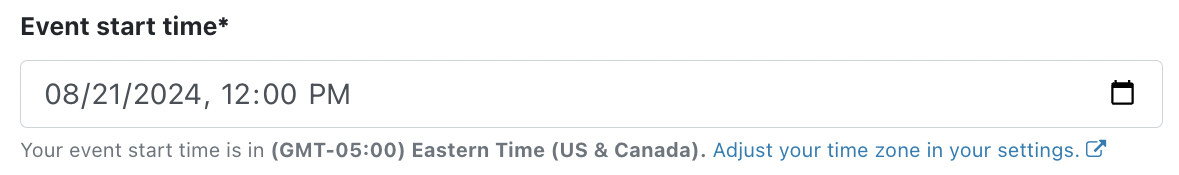

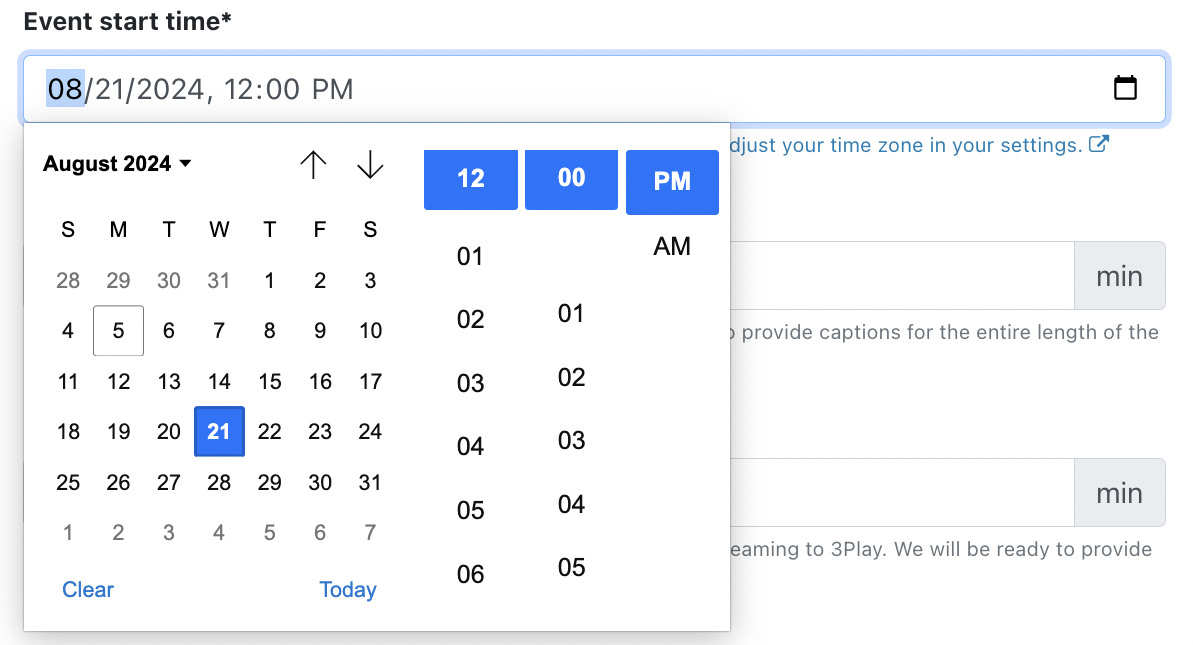

IMPORTANTEvents are scheduled using Eastern Time unless a new timezone has been configured at the user level and configured for users outside of the US-Eastern time zone.

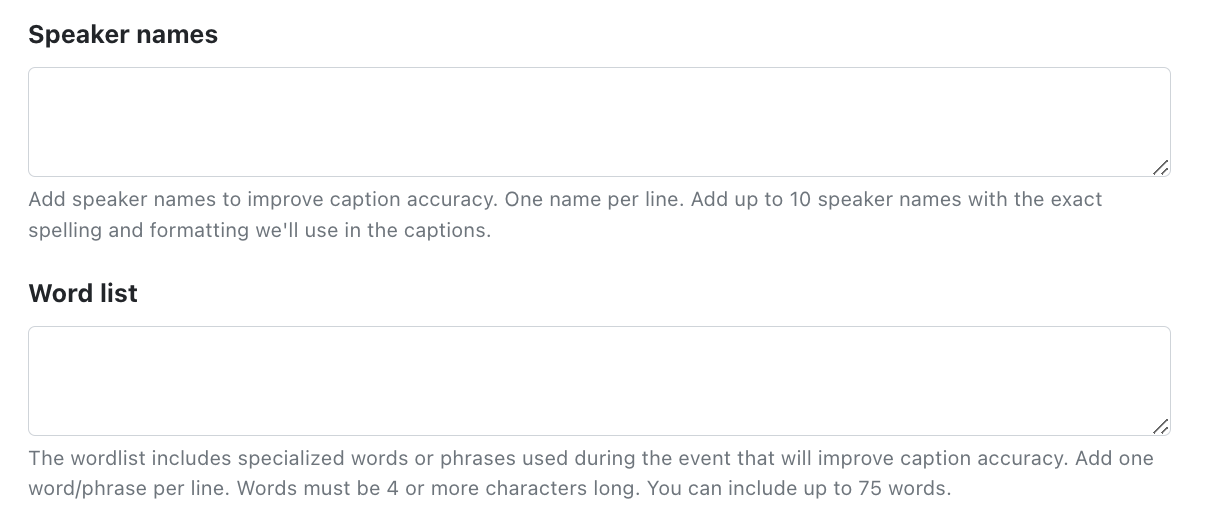

Wordlist (optional)

Click + Add Wordlist to provide any words the inform the automatic speech recognition process.

  • Do not add words with 3 or fewer letters - they will be removed from the list
  • Do not add words with special characters, except for apostrophes and periods
  • When adding a name or short phrase, keep all words together on a single line
  • Wordlists should be under 75 items in length

Once words have been added, click Add Wordlist

Advanced Settings

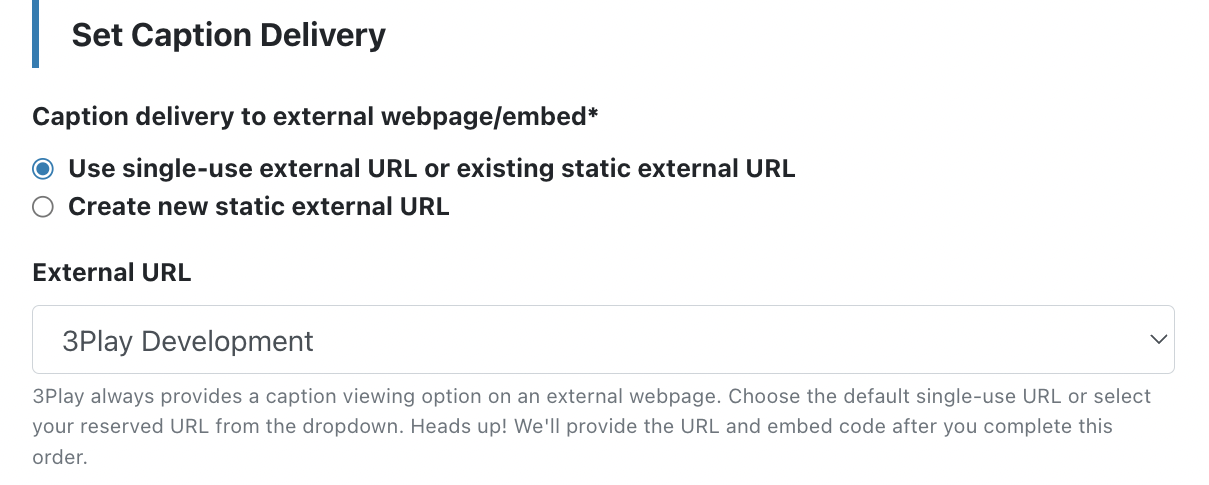

Click Edit Advanced Settings to adjust the settings below for the Live Captioning event. Please note it's important to specify your preference for caption delivery, either natively, in the Brightcove player or outside the player on a separate hosted page via iFrame/Javascript embed.


Maximum Captioning Delay

This will set a delay between the stream we receive and the captions we output. Longer latency will result in a more accurate output.
Defaults to 5000ms (5 second delay) however this can be toggled between a 2-15 second delay

Stream Wait Time
Set an amount of time for our system to wait for the event to begin. Once the determined wait time is reached for the scheduled event and the event has not started, the scheduled captions will no longer be available.
Defaults to 30 minutes

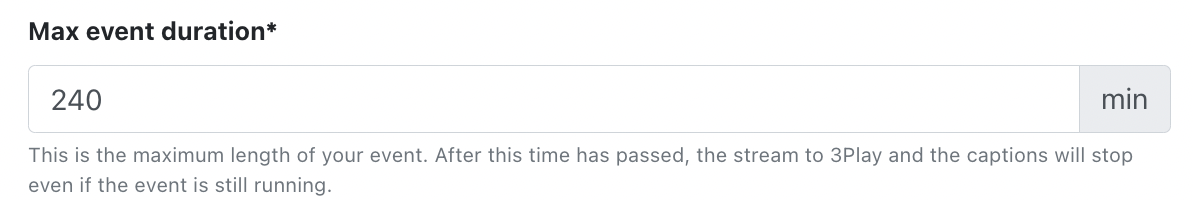

Max Stream Time
Set a maximum time for your live captioning event. This feature can be used as a safety net should a live event not be manually stopped. The Max Stream Time will determine a hard stop for the event as well.

If it is anticipated that a live event may run longer than scheduled, factor this when determining the Max Stream Time. Events in your project can be no longer than the Event Max Time setting.
Defaults to 240 minutes

Note that when a live event stream is manually stopped this will also override the set Max Stream Time and conclude the live captions for the event as well.

Save Event Stream
If enabled, the live stream will be saved as the source for the file after the event. This is useful if service upgrades are anticipated. Leave this off otherwise as it incurs extra processing both during and after the event and costs an additional $0.10/min.

See more information regarding upgrading Live Captioning files

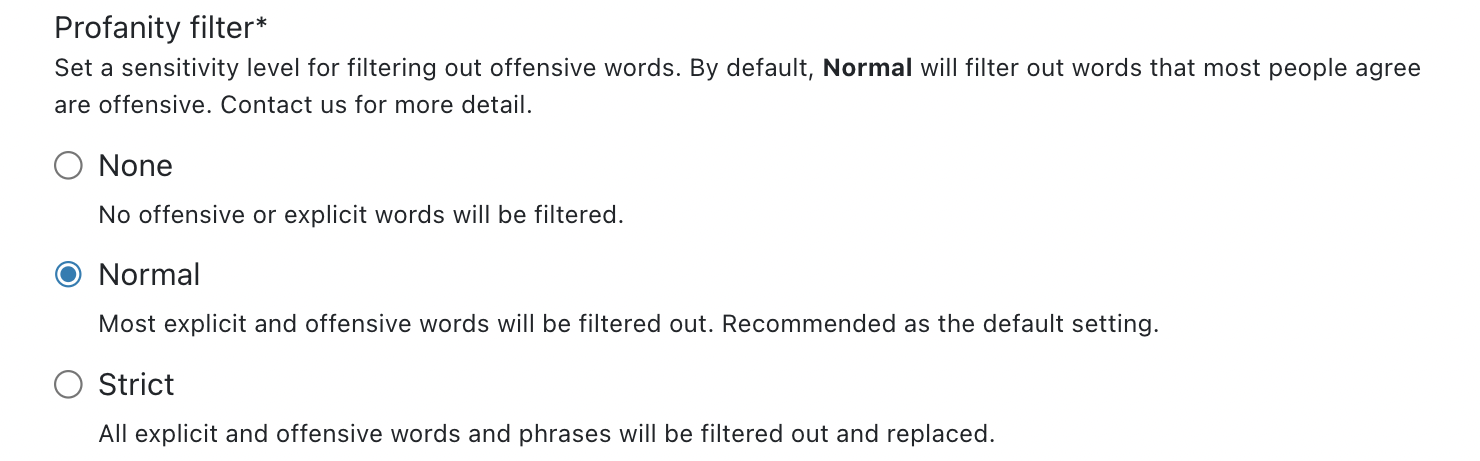

Profanity Filter
Set a sensitivity level for filtering out offensive words.

Defaults to Normal however it can be changed to None or Strict.

IMPORTANT: Advanced Settings can be edited up to 5 minutes prior to the scheduled start of the Live Captions!

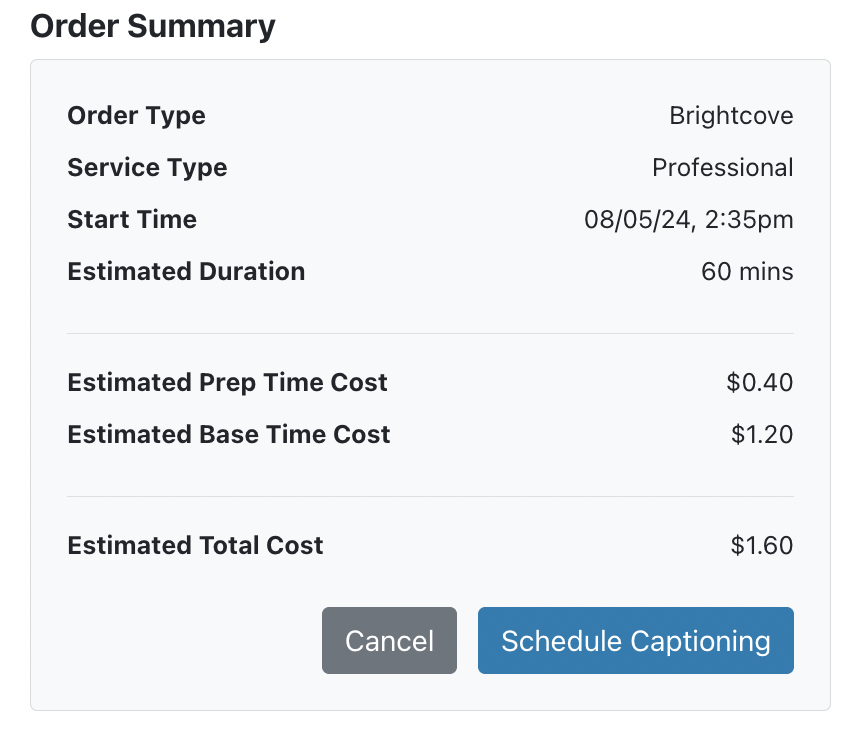

Step 8 - Click Schedule Events

Click Schedule Events once an event or multiple events have been configured.
Once clicked, you'll be redirected back to the event page within 3Play Media.

Once the live captions are scheduled, the page will redirect to a Confirmation page.

If you selected "3Play Captions via iFrame or JS Embed" as your preferred caption delivery method, then the 3Play embed code with the captions will populate on the confirmation page. From there, you can set up an event page for captions delivered to the 3Play iFrame/Javascript embed.




Next steps...

Brightcove Live Captioning: Start Live Event with captions delivered in the Brightcove player - BETA

Brightcove Live Captioning: Start Live Event with captions delivered to 3Play iFrame or Javascript embed
